The System

One cable. Hundreds of measuring points. Two readings at every one.

The IHTC Thermal Monitoring System is a sensing cable with integrated sensing modules every 16 ft (5 m), built to make continuous temperature part of how you run your facility.

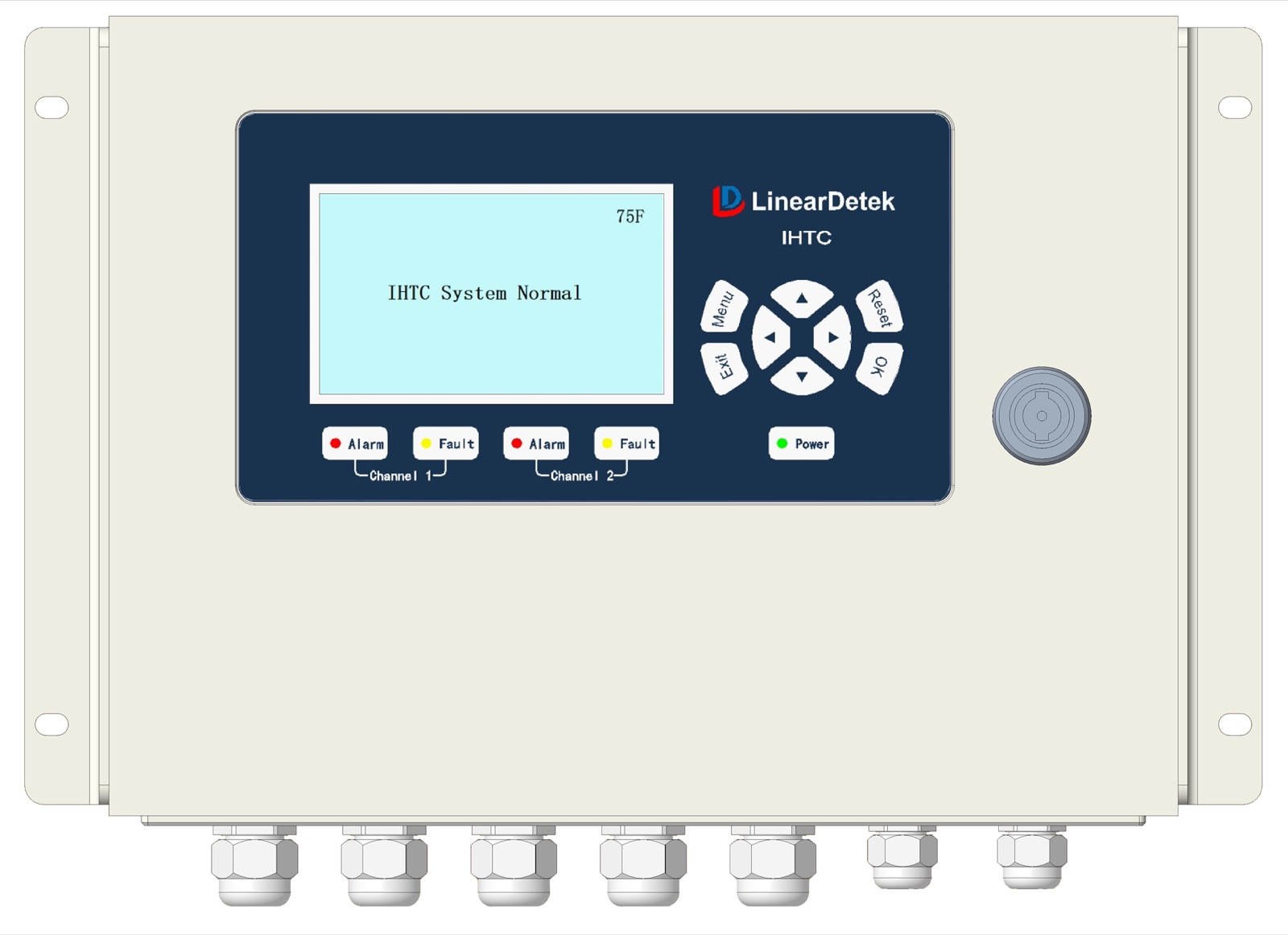

IHTC control unit — wall-mount enclosure with LCD status display reading 'IHTC System Normal', per-channel alarm and fault indicators, and sealed cable glands

Dual sensing at every point

The asset's own temperature — not the room's.

Each sensing module pairs a contact heat-sensing element with a non-contact infrared reading of the protected surface — the rack, the belt, the busbar. You see the asset's own temperature, not just the air around the detector, at every point along the run.

How it works

  1. 01

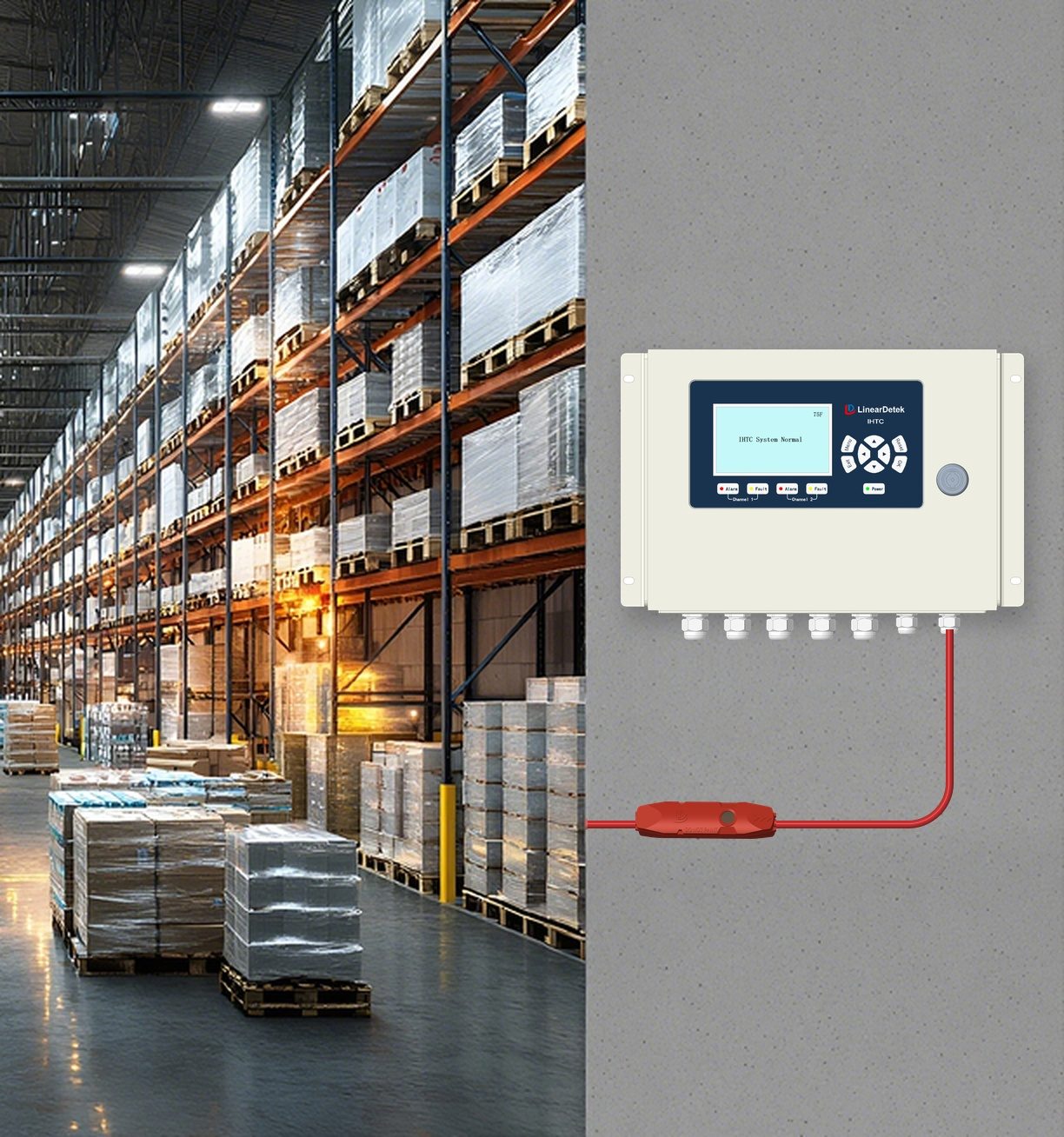

    Route the cable

    along the assets to protect — racks, belt lines, trays, busways.

  2. 02

    Connect the control unit.

    One control unit supports up to 6,560 ft (2,000 m) and 400 sensing points.

  3. 03

    Stream the data.

    Per-section temperatures, status, and event history over RS485 Modbus RTU into your SCADA, BMS, or DCIM — or into IHTC Monitor.

  4. 04

    Act on location.

    Alerts name the section, within 16 ft (5 m). Heat issues surface as scheduled maintenance instead of incidents.

IHTC Monitor software

A desktop application: live dashboards, trend charts, CSV data logging, alarm and fault event history, and support for up to 32 control units on one bus. It runs on your own network — or choose the Monitored Service for cloud-hosted dashboards.

Two ways to deploy

Integrate yourself
Hardware plus the documented Modbus register map (IHTC-COM-001). Your team connects IHTC to your SCADA, PLC, BMS, or DCIM. IHTC Monitor available as an option. Best for operations with existing monitoring platforms and integration staff.
Monitored Service COMING SOON
Hosted dashboards, email/SMS alert notifications, IHTC Monitor, and an annual thermal report, as an annual subscription. Best for sites without a SCADA or BMS — battery and charging areas, mid-market warehouses, property portfolios. Contact us for availability.

IHTC Monitor dashboard — live trends

/public/images/dashboard-trends.png

System at a glance

Coverage Up to 6,560 ft (2,000 m) per control unit; 2 channels × 3,280 ft (1,000 m)
Sensing points Up to 400 modules per control unit (200 per channel)
Location accuracy 16 ft (5 m)
Sensing per module Contact heat-sensing element + non-contact IR surface temperature
Monitoring modes Fixed temperature 185 °F (85 °C) and rate-of-rise, selectable sensitivity
Restorability Self-restoring after exposure up to 248 °F (120 °C)
Operating ambient −22 °F to 131 °F (−30 °C to 55 °C)
Communications RS485 Modbus RTU; per-channel dry-contact outputs
Power 24 VDC nominal (20.4–26.4 VDC)
Ingress rating IP67 — sensing cable (manufacturer rating)
Request the technical overview Start with an Evaluation Kit

Prove it in 60–90 days.

The Evaluation Kit is a fixed-fee pilot on one room or one run: hardware, commissioning, tuned alert thresholds, temporary monitoring for the pilot period, and an insurer-ready thermal report. The full fee credits toward a deployment, and you keep your data.

Start with an Evaluation Kit Request the technical overview
